Remington 1902 / Model No. 9 Rider Single Barrel

[HairlessApe]

I recently got ahold of my Great Great Grandfathers Remington 1902 / Model No. 9 Rider Single Barrel shotgun. It was in pretty rough shape and needed a complete and detailed cleaning. Unfortunately the diagram I drew, as I disassembled it, has disappeared and I can't remember where, how and the order that the parts fit together... Anyone have or know where I can get a schematic?

Thanks in advance.

[Researcher]

All I can offer is the catalog page --

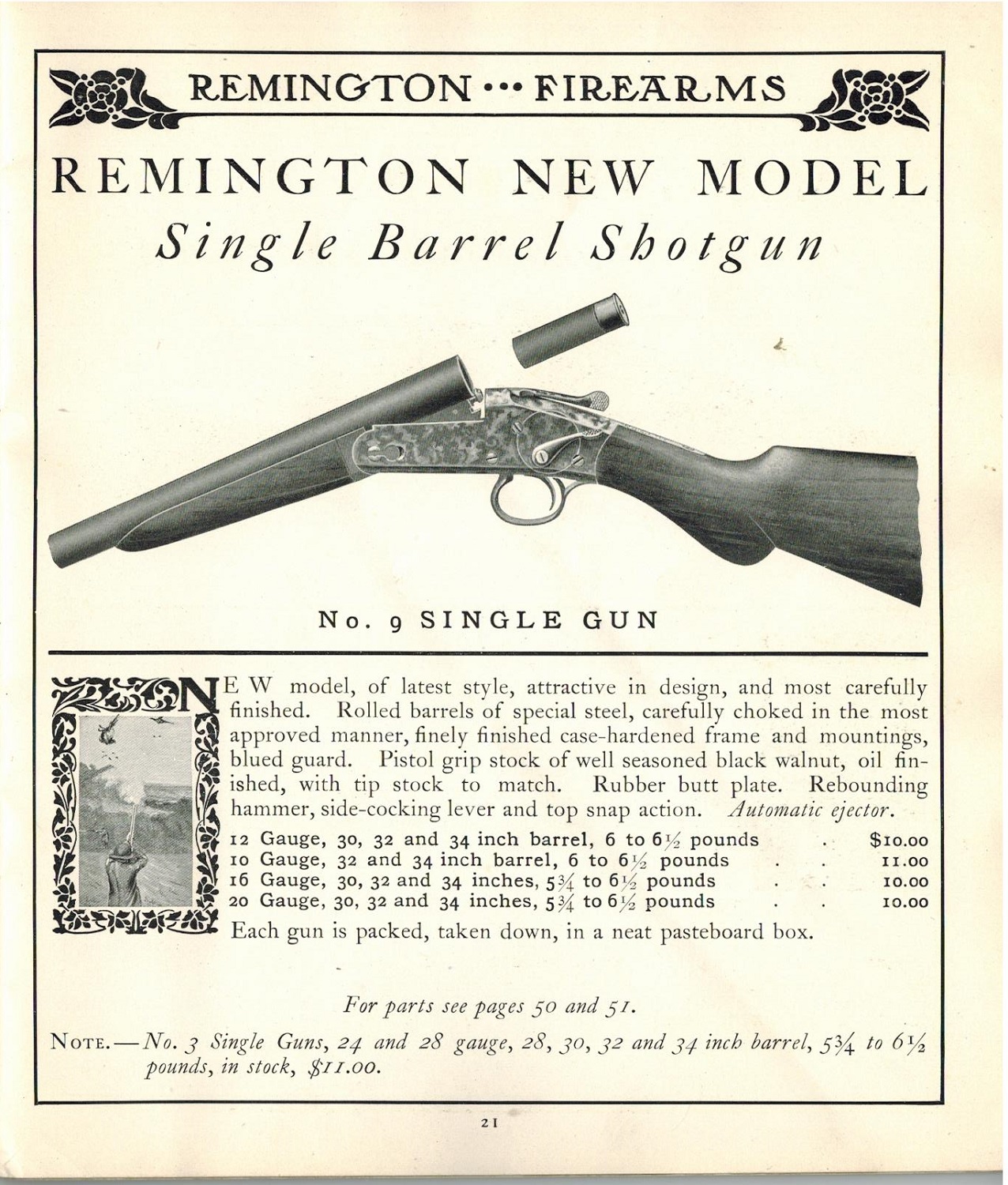

Model 1902, No. 9, 1903-04 catalog.jpeg (563.01 KiB) Viewed 2126 times

and the parts page from the catalogs --

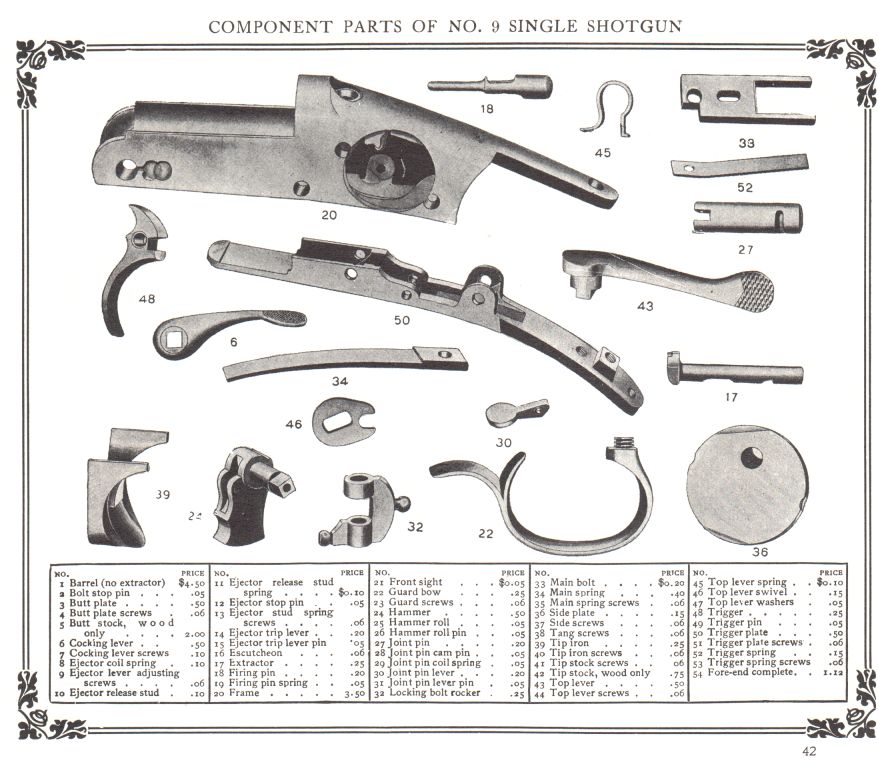

Parts List No. 9 Single 1906.jpg (116.69 KiB) Viewed 2126 times
