Remington model 1894 / 1900 Double
Remington factory parts list

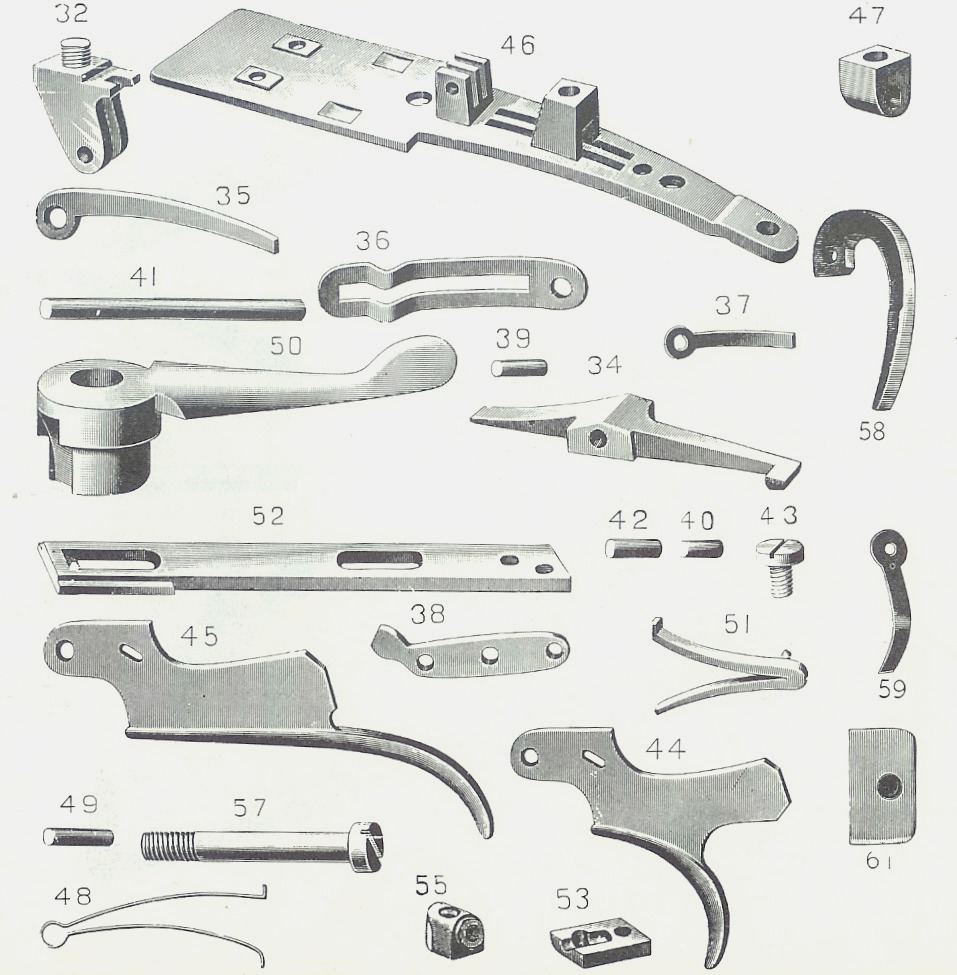

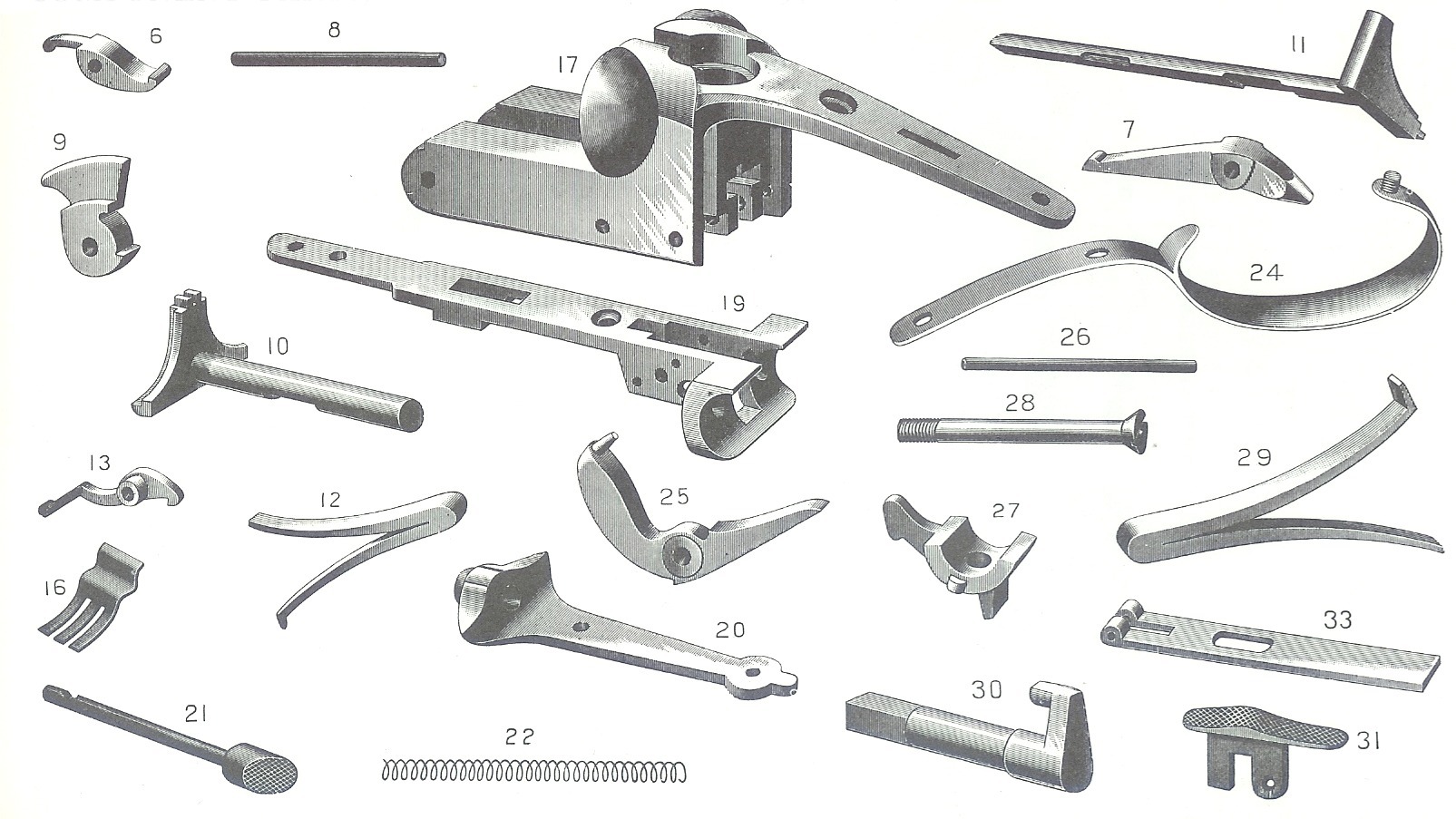

Part numbers listed above & below are factory part
numbers as shown in this illustration from 1902.
| 6 | Center Sear | 31 | Safety Slide |
| 7 | Cocking Levers (2 req) | 32 | Safety Stud |
| 8 | Cocking Lever pins | 33 | Safety Plunger |
| 9 | Ejector Hammer RH | 34 | Sear, RH |
| 9 | Ejector Hammer LH | 34 | Sear, LH |
| 10 | Extractor | 35 | Sear Spring, RH |
| 11 | Ejector, RH | 35 | Sear Spring, LH |
| 11 | Ejector, LH | 36 | Safety Spring |
| 12 | Ejector Spring, RH | 37 | Safety Plunger Spring |
| 12 | Ejector Spring, LH | 38 | Safety Rocker |
| 13 | Ejector Sear | 39 | Safety Rocker Pin |
| 14 | Ejector Hammer Pin | 40 | Short Rocker Pin |
| 15 | Ejector Sear & Stop Pin | 41 | Sear Pin |
| 16 | Ejector Sear Spring | 42 | Safety Plunger Slide Pin |
| 17 | Frame | 43 | Trigger Plate Screw |
| 18 | Fore-End Complete | 44 | Trigger, RH |
| 19 | Fore-End Iron | 45 | Trigger, LH |
| 20 | Fore-End Tip | 46 | Trigger Plate |
| 21 | Fore-End Plunger | 47 | Trigger Plate Nut |
| 22 | Fore-End Plunger Spring | 48 | Trigger Spring |
| 23 | Front Sight | 49 | Trigger Pin |
| 24 | Guard Bow | 50 | Top Lever |
| 25 | Hammer, RH | 51 | Top Lever Spring |
| 25 | Hammer, LH | 52 | Tip Bolt |
| 26 | Hammer Pin | 53 | Tip Bolt Cap |
| 27 | Joint Check | 54 | Tip Bolt Screw & Nut |
| 28 | Lower Tang Screw | 55 | Tip Escutcheon |
| 29 | Main Spring RH | 57 | Upper Tang Screw |
| 29 | Main Spring LH | 58 | Fore-End, Wood Only |
| 30 | Rocker Bolt | . | . |
|
Below are parts peculiar to |
|||
| 56 | Tip Stock | 59 | Fore-End Catch Spring |
| 58 | Fore-End Catch | 60 | Fore-End Catch Pin |
